DC-68G HARVESKING2
HARVESTER
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

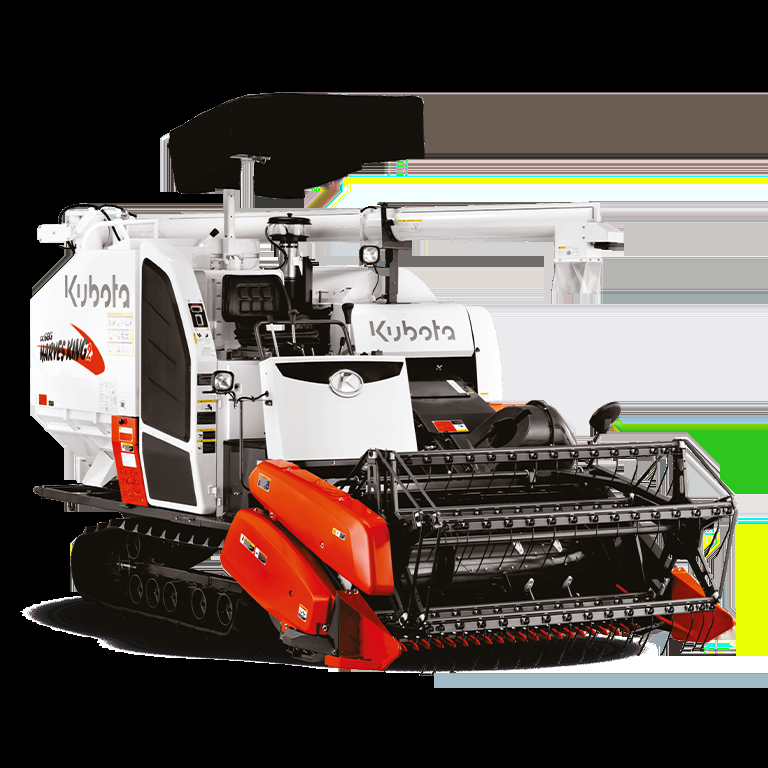

Discover the power of India's best-selling paddy harvester, the DC-68G HK2. With a spacious operator seat and an intuitive dashboard, it offers comfort during long hours and boosts profits. Its 1250-liter grain tank reduces downtime, while the 235-degree rotating unloading system ensures efficient harvesting. Plus, the dust-removal system keeps the cabin clean for a seamless harvest experience.
SPECIFICATIONS
| ENGINE | |||
| Model | V2403-M-DI-TE-CS1T | ||
| Type | Water-Cooled 4-Cycle 4-Cylinder Vertical Diesel Engine [WithTurbocharger] | ||
| Displacement (cc) | 2434 | ||
| Output (kW{HP}/rpm) | 49.2(66.0) / 2700 | ||
| Fuel Tank Capacity (L) | 60 | ||
| DIMENSIONS | |||
| Length (mm) | 4800 | ||
| Width (mm) | 2245 | ||
| Height (With Canopy Stored) (mm) | 2800 | ||
| WEIGHT (Kg) | 3200 | ||
| DRIVE SYSTEM | |||
| Crawlers | |||
| Width x Ground Contact Length (mm) | 500 x 1800 | ||
| Average Ground Contact Pressure (kPa) | 17.4 | ||
| Ground Clearance (mm) | 325 | ||
| Transmission | |||
| Traveling Speed (m/s) F/R | Medium:0-1.23 High:0-1.75 | ||
| Harvesting Speed m/s | 1.23 | ||
| Steering | Clutch and Brake | ||
| CUTTING | |||
| Pickup Reel Diameter x Width (mm) | 900 x 1903 | ||
| Height Adjustment | Hydraulics | ||
| Gathering length (mm) | 2075 | ||
| Cutter Bar Length (mm) | 1980 | ||
| Cutting Height Range (mm) | -19-819 | ||
| THRESHING / SEPARATING | |||
| Threshing System (mm) | Spiked Tooth Axial Flow | ||
| Threshing Cylinder | |||
| Diameter x Length (mm) | 620 x 1650 | ||
| Revolutions (rpm) | 560 | ||
| Concave Area (㎡) | 0.9 | ||
| SieveCase Length x Width (mm) | 1375 x 840 | ||
| CLEANING | Oscilating / 3 Way Air Stream Cleaning System | ||
| GRAIN TANK | |||
| Capacity (l) | 1250 | ||
| Grain Discharge Height Range (m) | 1.1-4.5 | ||
| Length of Grain Unloader (m) | 3.66 | ||
| Turning Angle of Grain Unloader (degree) | 235 | ||
| Grain Discharge Time | Around 90 Seconds | ||
| ELECTRICAL SYSTEM | 12 Volts Battery Starting, Lighting Equipment, Alarms (Coolant Temperature, Battery Charge, Engine Oil, Grain Tank Full and Tailings Clogging) | ||
| HARVESTING CAPACITY* (ACRE / DAY) | 5.75-10 | ||
Calculated according to our criteria. The actual capacity you achieve may be different.
The specifications, information and appearance of the machines herein are subject to change without notice.
