Boom Sprayer
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

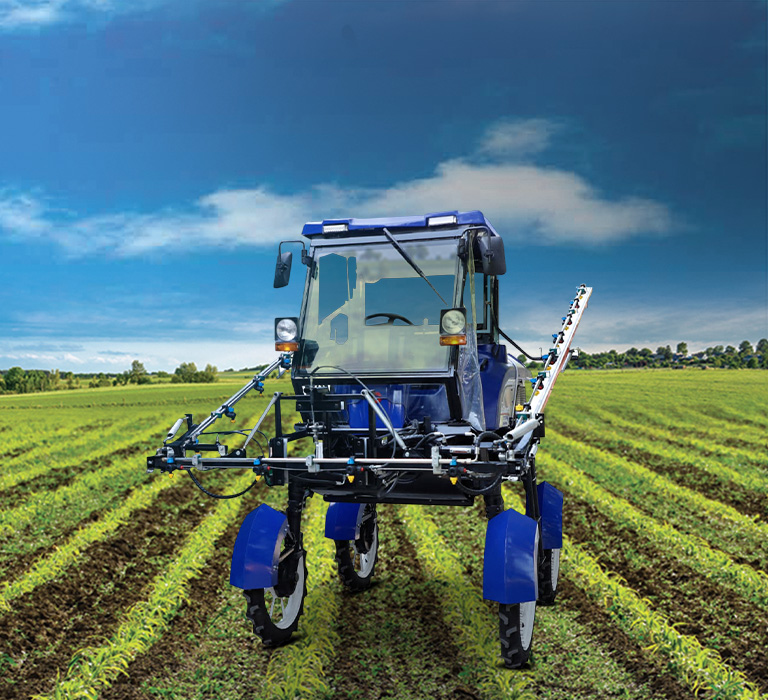

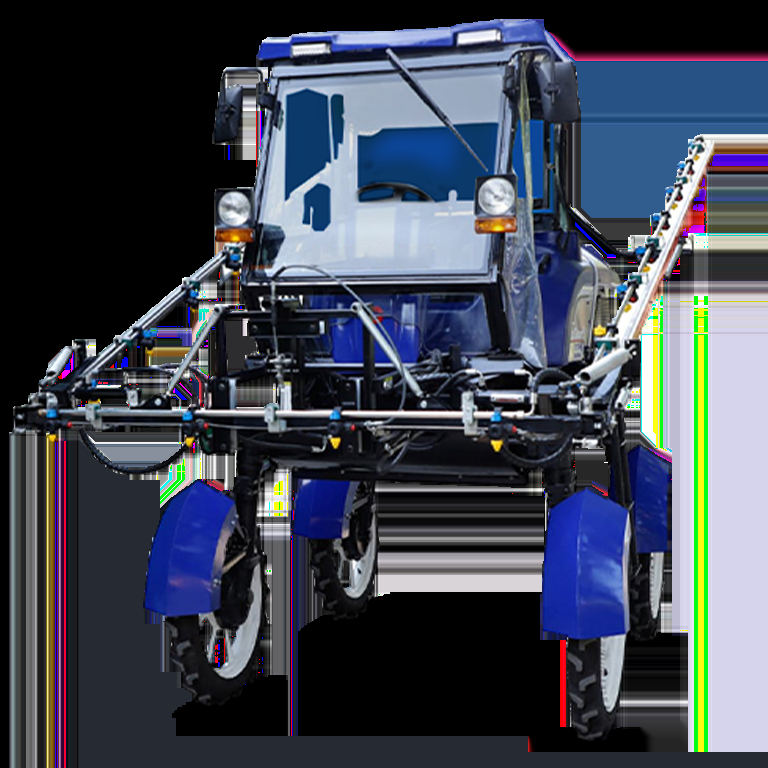

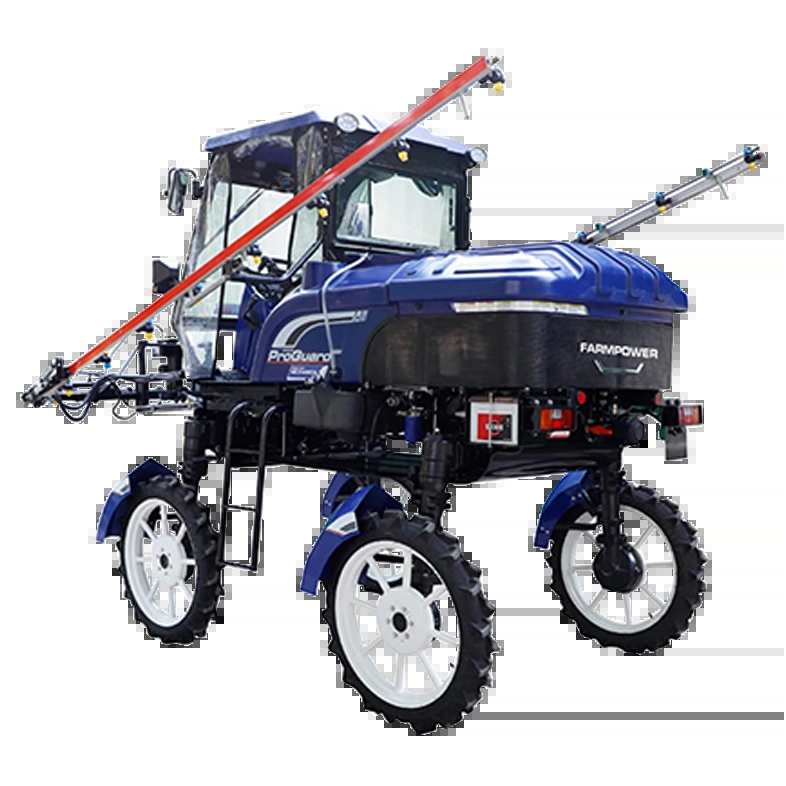

ProGuard series of Precision Boom Sprayers are designed for high performance and long usage which ensure high earning potential for agri-contractors and operators.
These self-propelled machines with high ground clearance, wide boom length and advanced spraying technology are suited for row crops such as cotton, wheat, potato, sugarcane, chili and pulses.
SPECIFICATIONS
| Model | Self - Propelled Boom Sprayer (PG600) |
| Engine | MVS3L2 – T3CC2ET (Mitsubishi) |
| Fuel Tank Capacity (Ltr.) | 600 |
| Fuel consumption | 2.5 L/hr |
| Travelling Gear Type | 4WD, 4WS |
| Brake | Wet, Multi Disc Type Mechanical Type |
| Travelling Speed (KM/H) | Moving 0 to 12 |
| Spraying | 0 to 5.0 |
| Rotational Speed (RPM) | 540 |
| Water Absorption (L/MIN) | 55 |
| Pressure (Maximum) (MPA) | 4 |
| Nozzle Type | Two Way Double Action, Hollow cone, Flat Pan |
| Number of Nozzles (pc) | 20 |
| Spray Width (m) | 10 |
| Ground Clearance of Nozzles (mm) | 500 to 1900 |
