DC-68G
HARVESKING PRO
HARVESTER
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

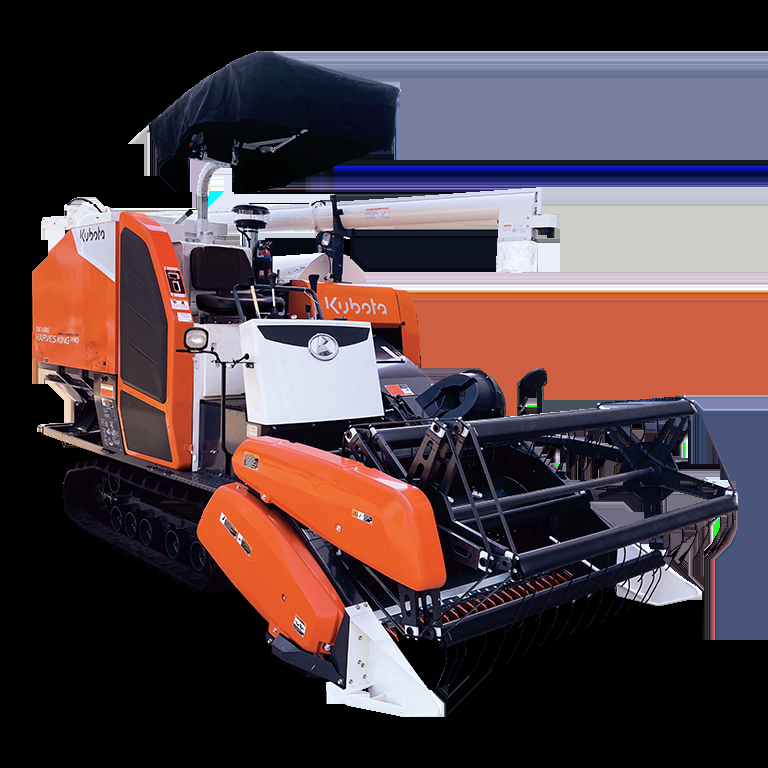

The Kubota DC-68G HarvesKing Pro is an exceptionally versatile combine harvester engineered for efficient and high-performance harvesting. Powered by a robust 66 HP Kubota diesel engine, this machine guarantees reliability and power in every operation. With a maximum operating speed of 1.75 m/s, the DC-68G ensures swift and efficient harvesting, allowing you to cover more area in less time. The harvester also boasts a large-capacity grain tank, significantly reducing downtime by minimizing the need for frequent unloading
SPECIFICATIONS
| Model | DC-68G HARVESKING PRO | ||
| Machine dimensions | |||
| Overall length (mm) | 4800 | ||
| Overall width (mm) | 2260 | ||
| Overall height (mm) [with canopy stored] | 2800 [2625] | ||
| Base machinery mass (Kg) | 3200 | ||
| ENGINE | |||
| Model | V2403-M-DI-TE-CS3T | ||
| Type | Water-cooled four-cycle four-cylinder vertical diesel engine [with turbocharger] | ||
| Total Displacement L(cc) | 2.434 (2434) | ||
| Output (kW{HP}/rpm) | 49.2 (66) / 2700 | ||
| Fuel Tank Capacity (L) | 60 | ||
| Traveling section | |||
| Crawler | |||
| Width x Ground contact length (mm) | 500 x 1800 | ||
| Average ground pressure (kPa{kgf/cm²}) | 17.4 {0.18} | ||
| Minimum ground clearance (mm) | 325 | ||
| Number of speeds | |||
| Stepless forward and backward | Hydrostatic transmission [HST] | ||
| [2-step range gear shift each for forward and backward] | Hydrostatic transmission [HST] | ||
| Traveling speed (m/s) | |||
| Forward | [Range gear shift] Low speed: 0 to 0.90 | ||
| Backward | High speed: 0 to 1.75 | ||
| Turning system | Brake-turn system | ||
| Reaper section | |||
| Reel | |||
| Diameter x Width (mm) | 900 x 1903 | ||
| Up / down control | Hydraulic system | ||
| Reaping width (mm) | 2075 | ||
| Blade width (mm) | 1980 | ||
| Reaping height range (mm) | -19 to 800 [Cutting blade edge] | ||
| Threshing/Separating | |||
| Threshing Cylinder | |||
| Diameter x Length (mm) | 620 x 1650 | ||
| Revolutions (rpm) | 560 | ||
| Concave Area (m²) | 1.456 | ||
| Sleve Case Length x Width (mm) | 1370 x 840 | ||
| Cleaning | Oscilationg / 3 way Air Stream Cleaning System | ||
| Grain Tank | |||
| Capacity (L/m² Kg) | 1250/1.25/ approx 750 | ||
| Grain Discharge Height Range (mm) | 1785-4465 | ||
| Length of Grain Unloader (m) | 3.66 | ||
| Turning Angle of Grain Unloader (degree) | 235 | ||
| Electrical System | 12 Volts Battery Starting, Lighting Equipment, Alarms(Coolant Temparature, Battery Charge, Engine Oil, Grain Tank Full and Tailings Clogging) | ||
Kubota reserves the right to adjust or upgrade specifications at any time without prior notice.
