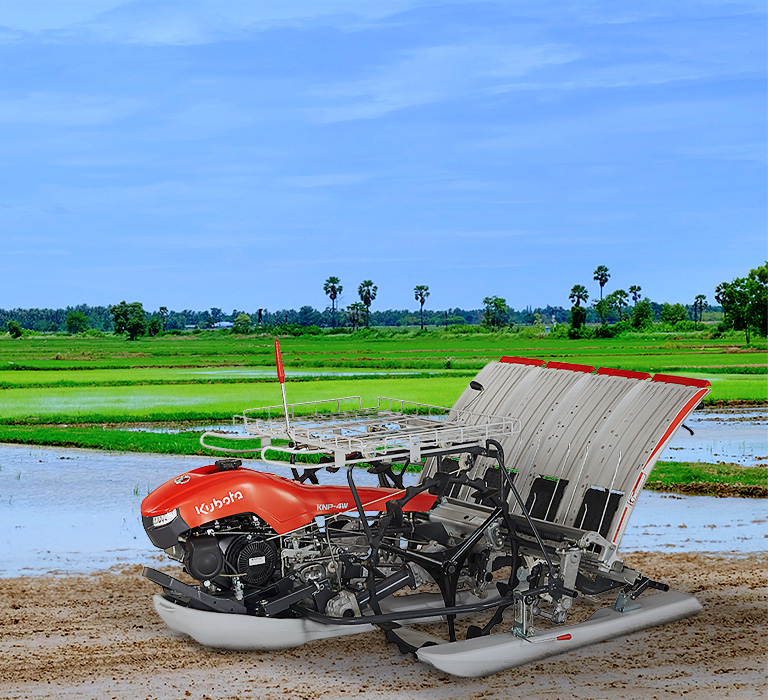

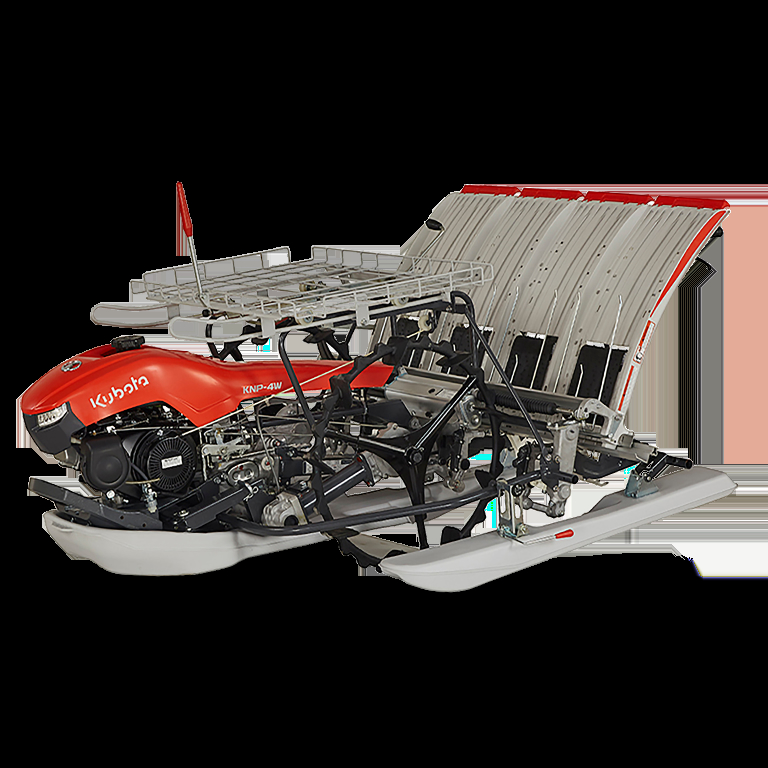

KNP-4W
RICE TRANSPLANTER
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.
Best suitable mechanism of Paddy planting with new advance Kubota KNP-4W which is highly suitable for small and medium farmers.Planting is most labor intensive process in rice farming, thereby reducing labor and increasing efficiency with high yield. Kubota KNP-4W provide peace of mind to all individual farmers for paddy planting with coverage capacity of 1 to 1.5 Ha./day with individual operator.
SPECIFICATIONS
| Type | Walk-behind type | ||
| Machine Dimensions | |||
| Overall length (mm) | 2140 | ||
| Overall width [during operation] (mm) | 1630 (2280) | ||
| Overall Height (mm) | 900 | ||
| Overall Weight (Kg) | 169 | ||
| Engine | |||
| Model | MZ200-B-2-A | ||
| Type | Air-cooled 4-stroke single-cylinder OHV gasoline engine | ||
| Total engine displacement L(cc) | 0.192 [192] | ||
| Output/rotational speed kW [HP]/rpm | 3.3 [4.4] / 2600 | ||
| Usable fuel | Regular automobile gasoline (unleaded) | ||
| Fuel tank capacity (L) | 10 | ||
| Ignition system | Non-contact electromagnetic ignition | ||
| Starter system | Recoil starter | ||
| Movement parts | |||
| Wheel adjustment | Hydraulic system (wheel up/down) | ||
| Wheel | |||
| Type | Thick rimmed rubber wheels | ||
| Outer diameter (mm) | 660 | ||
| Number of gears | Main shift: 2 gears for moving forwards, 1 gear for moving in reverse | ||
| Planting Portion | |||
| Number of planting rows | 4 | ||
| Planting row spacing (cm) | 30 | ||
| Planting Hill space (cm) | 12-14-16-18-21*1 | ||
| Number of hills (hills/m2) | 28-24-21-19-16*1 | ||
| Planting depth (cm) | 7 to 37 (5 settings) | ||
| Hill quantity adjustment method | |||
| Crossfeed distance/revolution (mm) | 10.3/26, 13.4/20 | ||
| Scraping depth (mm) | 7 to 17 (across 9 settings) | ||
| Planting Speed (M/S) | 0.47 to 0.85 | ||
| TRAVELLING ON ROAD SPEED (M/S) | 0.90 to 1.64 | ||
| OPERATION EFFICIENCY (Ha/H) | 0.14 to 0.26 | ||
| SEEDING CONDITION | |||
| Type of seedling | Seedlings in mat | ||
| Seedling height (cm) | 10 to 25 | ||
| Foliar age (leaves) | 2.0 - 4.5 | ||
| Number of spare seedlings that can be loaded (boxes) | 3 | ||
| Horizontal Control Mechanism for tranplanting section | Horizontal Control Mechanism | ||
