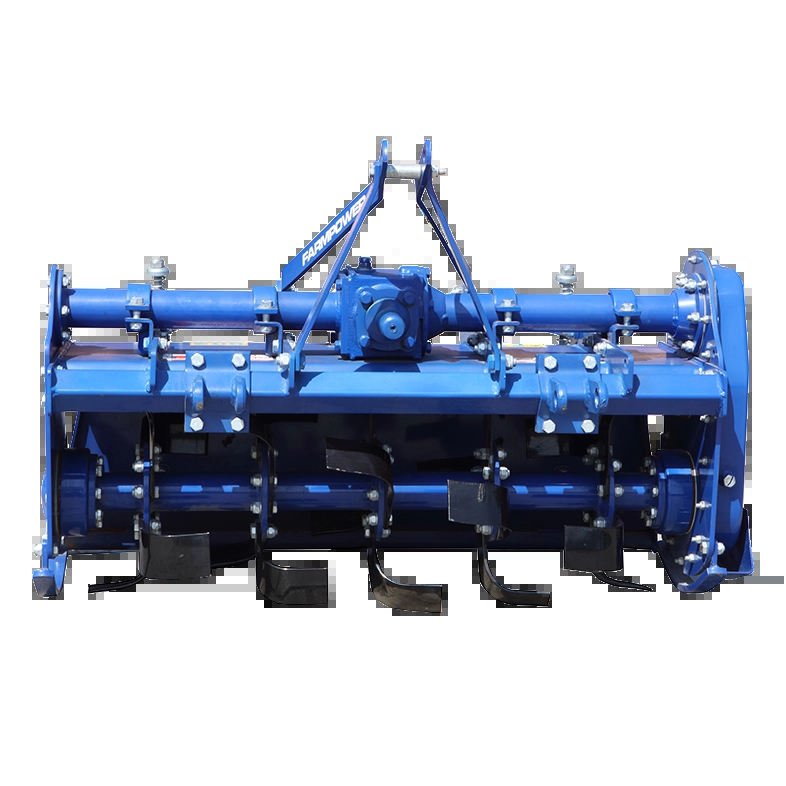

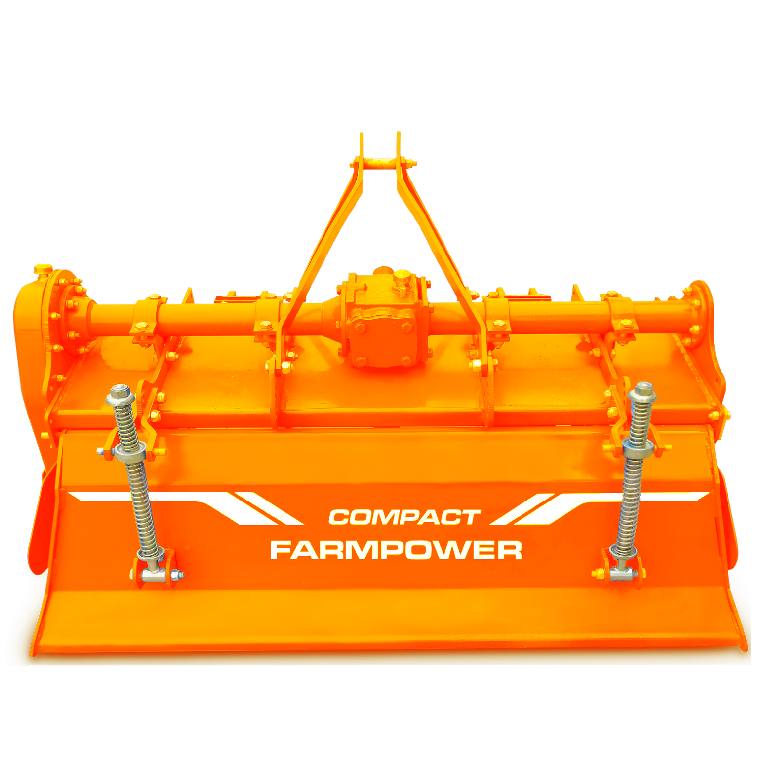

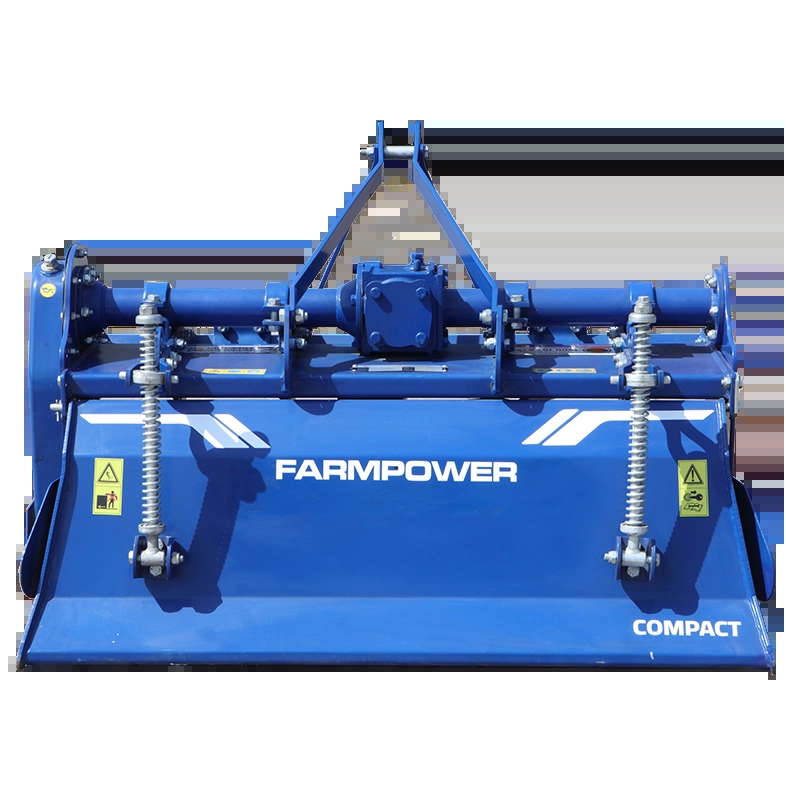

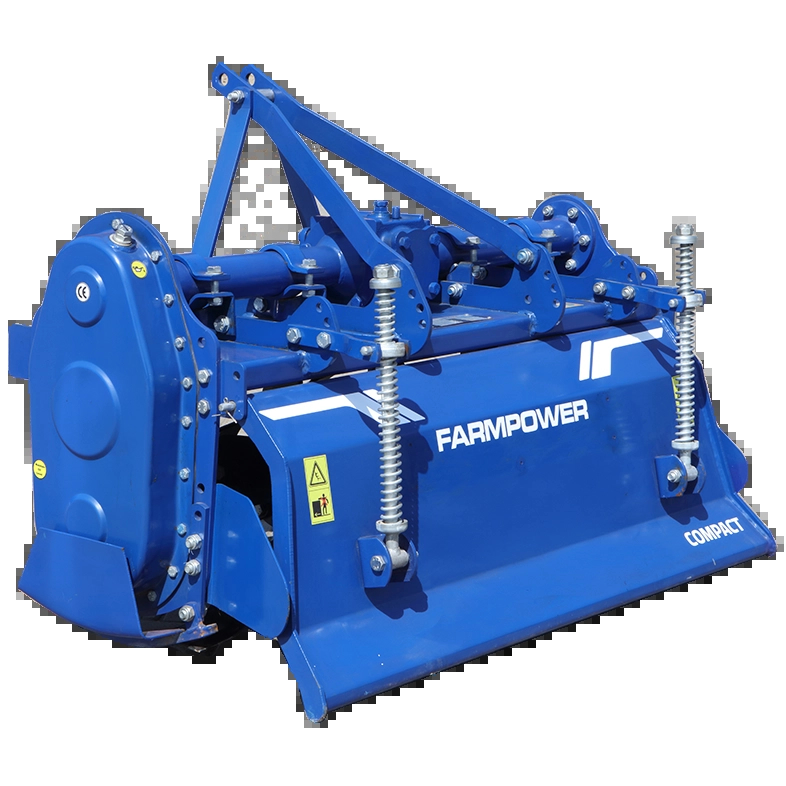

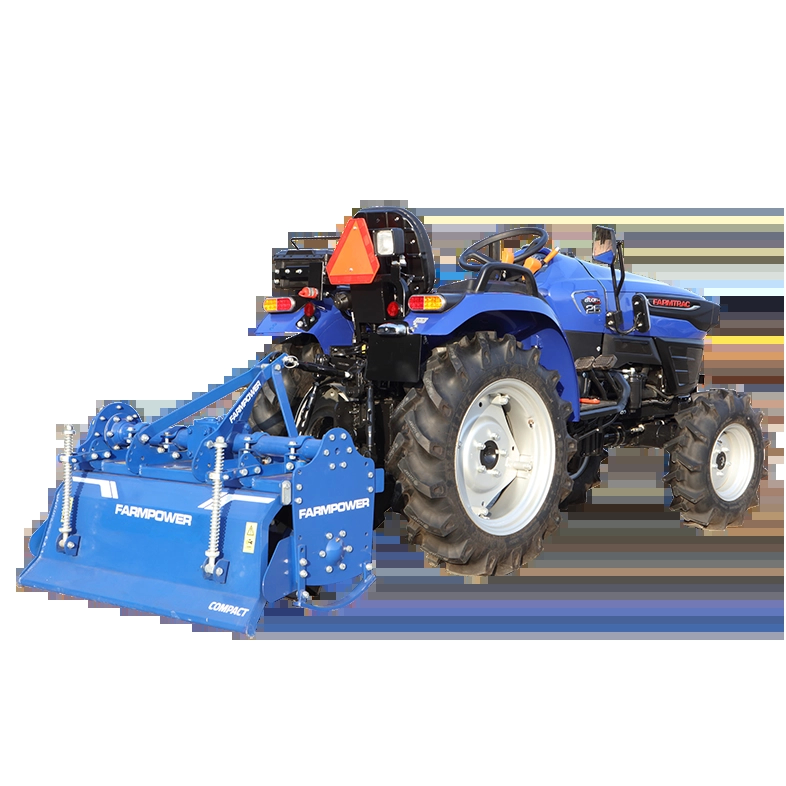

COMPACT
ROTAVATOR
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.
It's specally designed compact structure makes it best use for intercultural operations in orchard, horticulture and vegatable crops, the Strong & sturdy design make hassle free performance & better durability
SPECIFICATIONS
| Model | 3 ft | 3.5 ft | 4 ft |
| Side Drive | Gear Drive | ||
| Type of blade | LC type -Japanese make | ||
| No. of Blades | 16B & 24B | 20B & 30B | 24B |
| Dimensions | |||
| Cutting width (mm) | 740 | 970 | 1160 |
| Over all width (mm) | 800 | 1220 | 1400 |
| Tractor Power (HP) | 18 - 22 | 18 - 24 | 24 - 30 |
| Type of Gear Box | Single speed | ||
| RPM on Rotor Shaft | 540 PTO/215 | ||
| Weight (Kg) | 165/175 | 185/197 | 210 |
