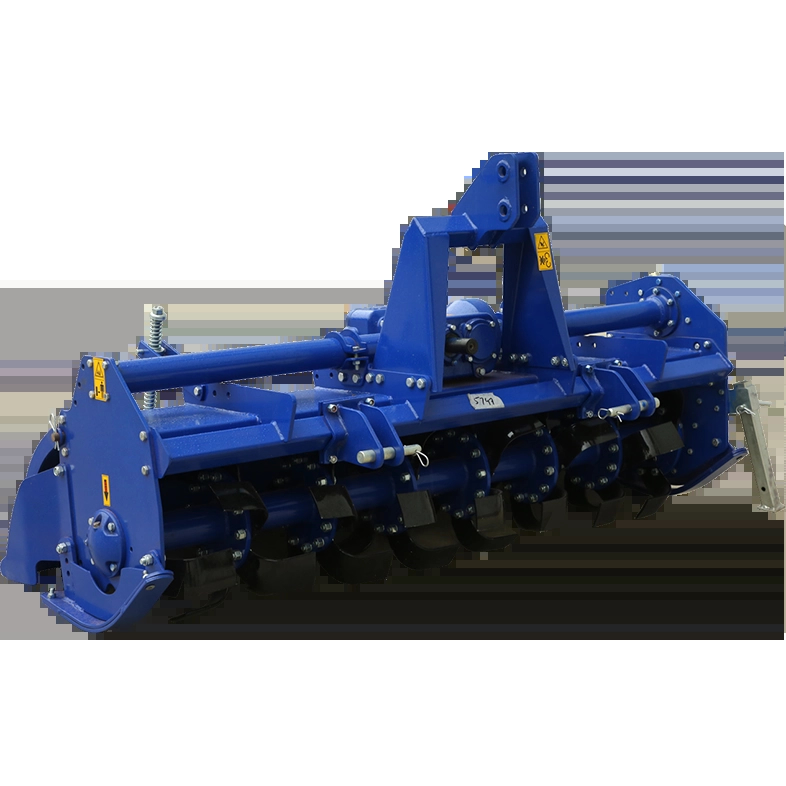

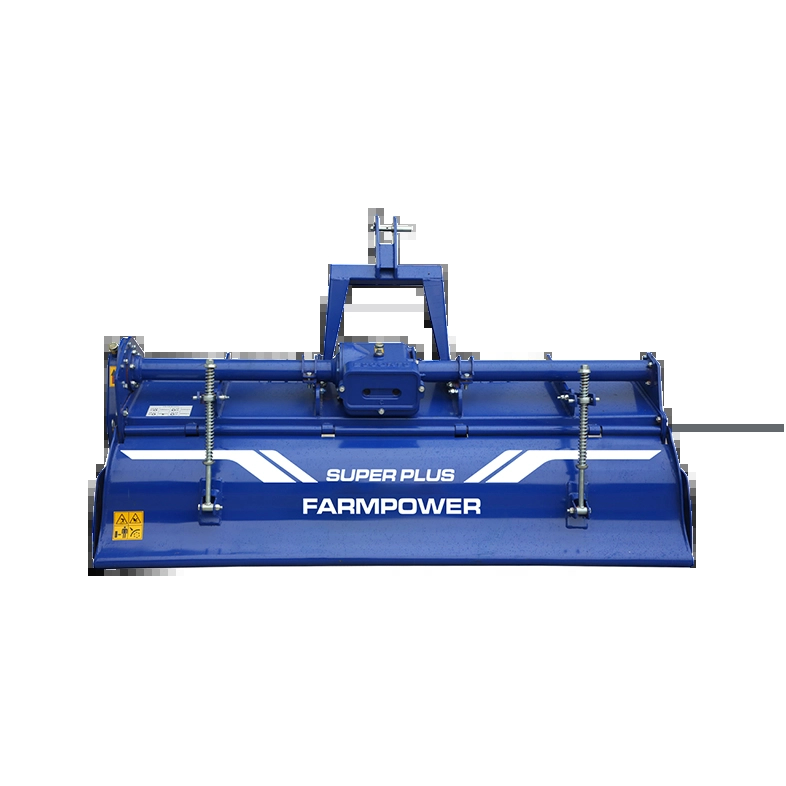

SUPER PLUS
ROTAVATOR
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.
Clods and rocky soils are not a problem for our specially designed Supreme rotavator.
The high clearance between blade and rotor makes it best suited for hard soils.
Its Heavy-duty robust structure ensures durability and reduces vibration during long work hours.
SPECIFICATIONS
| Model | 5 ft | 6 ft | 6 ft | 7 ft | 7 ft | 8 ft |
| No. of Blades | 36 | 42 | 48 | 48 | 54 | 54 |
| Hitch Type | Pyramid type | |||||
| Side Drive | Side Drive (Gear) | |||||
| Type of Gear Box | Multi speed | |||||
| Type of blade | L type – Boron | |||||
| Dimensions | ||||||
| Cutting width (mm) | 1468 | 1750 | 1750 | 1968 | 1968 | 2220 |
| Over all width (mm) | 1750 | 2000 | 2000 | 2250 | 2250 | 2500 |
| Over all Height (mm) | 1080 | |||||
| Tractor Power (HP) | 35-40 | 40-50 | 40-50 | 45-55 | 45-55 | 55 – 65 |
| Rotor Speed @540 PTO RPM | Z15x18-180 RPM Z18x15-259 RPM Z16x17-203 RPM Z17x16-230 RPM | |||||
| Weight (Kg) | 388 | 418 | 425 | 455 | 460 | 489 |
